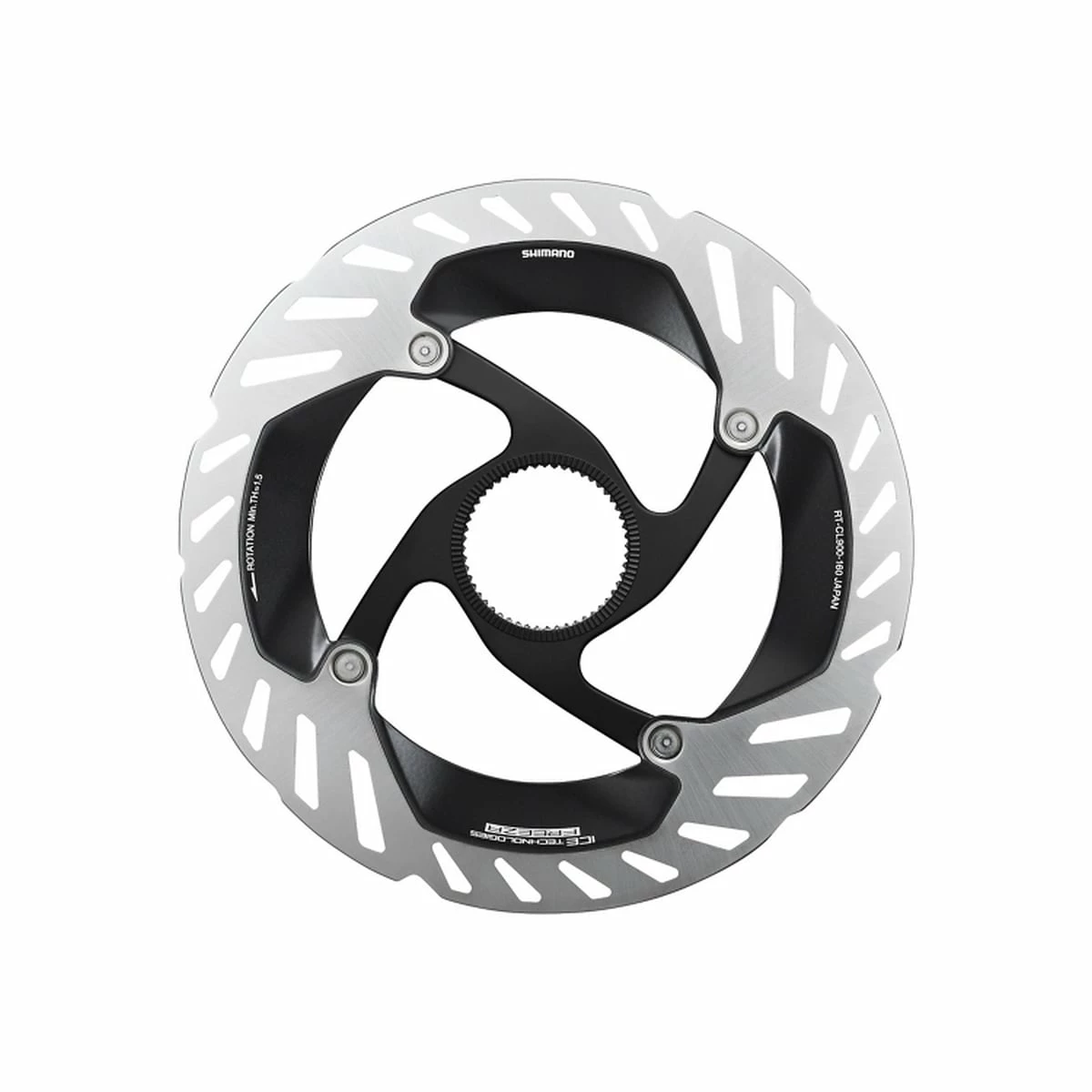

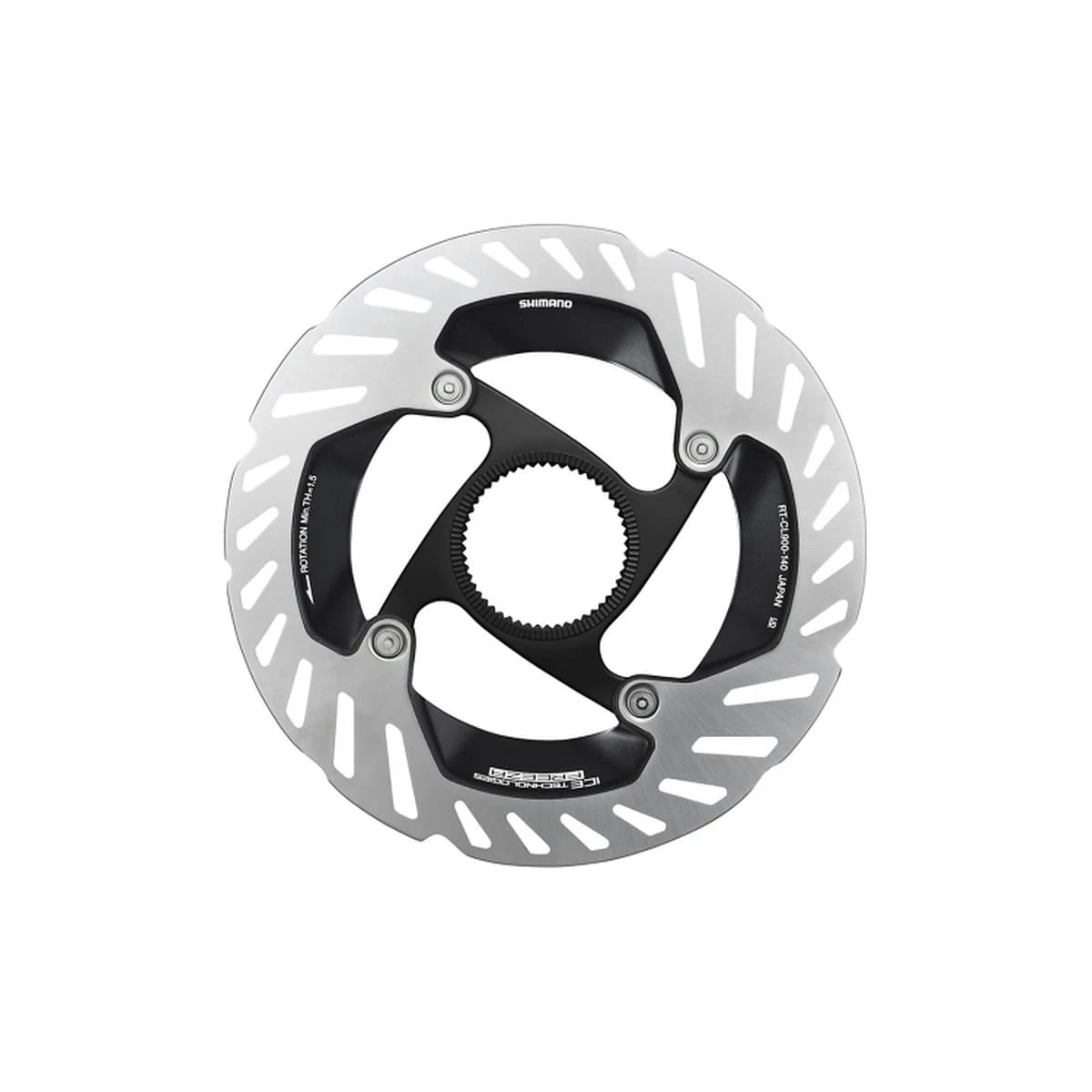

Shimano RT-CL900 Brake Disc With Magnetic Lock Ring STEPS E-Bike

Super-silent and extremely robust: When developing the RT-CL900 disc rotor, SHIMANO paid even more attention to optimal heat dissipation. The goal: Prevent heat-related deformation for even quieter braking – without compromising on weight, stopping power and stability.

For this purpose, the design of the spider was specially adapted, resulting in a more stable construction overall. The proven ICE TECH FREEZA technology also ensures first-class heat management at the friction ring. The ring’s sandwich construction with an aluminium core between two stainless steel layers effectively dissipates heat via the integrated cooling fins with additional thermal coating – for increased resistance against fading and improved braking performance. You can therefore rely on the reliable braking performance of the RT-CL900 brake disc even on long, steep descents in all conditions.

The SHIMANO brake disc with centrelock magnetic lockring is specially designed for e-bikes with a STEPS drive system for use on the rear wheel with the SHIMANO EW-SS302 speed sensor. For the front wheel, the corresponding RT-CL900 brake rotor without magnet can be used.

Details:
• Disc rotor for e-bikes with SHIMANO STEPS drive unit
• With Centerlock magnetic lock ring for EW-SS302 speed sensor
• Two-component design for a low weight and high stiffness
• ICE-Tech-Freeza: aluminium core between two stainless steel layers for effective heat dissipation
• Cooling fins with additional thermal coating on the inside of the friction ring
• Optimised carrier design for low-noise braking
• Lockring version with internal splines (see note)
• For organic or sintered brake pads

Technical details:
• Intended use: E-Bike (Road, Gravel)
• Material: stainless steel, aluminium (disc), aluminium (carrier, lockring)
• Brake disc mount: Centerlock
• Rotor diameter: Ø 160 mm
• Weight (without lockring): approx. 114 g

In the box:
• 1 SHIMANO RT-CL900 brake disc

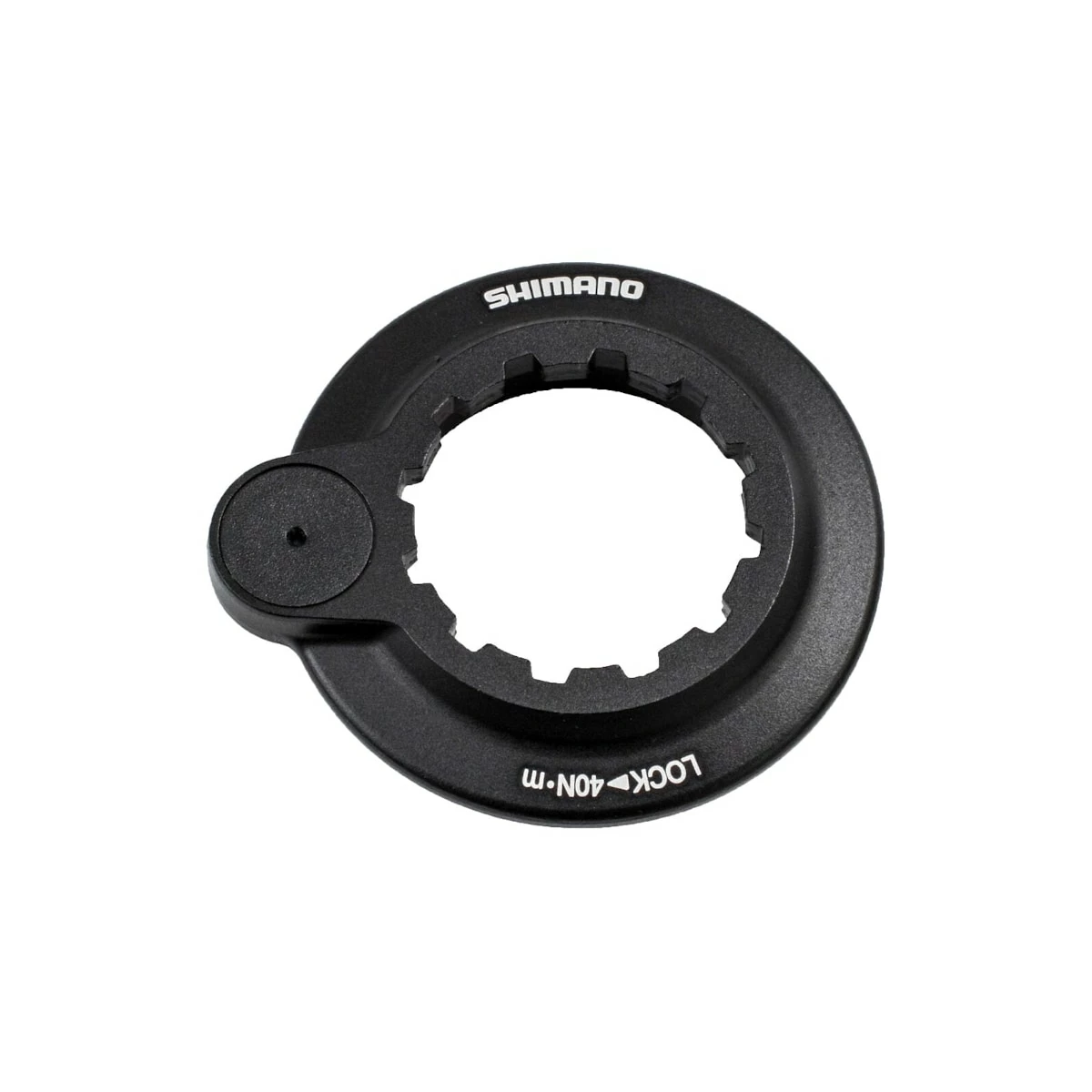

• 1 SHIMANO lockring with magnet, internally splined

Attention:
The lockring version with internal splines is suitable for quick release hubs (QR) and most thru axle hubs up to 12mm diameter. For 12mm thru axles, please check for compatibility in advance.

Tip:
The matching SHIMANO RT-CL900 brake disc for the front wheel from the Dura-Ace R9200 series can be found under prod. code: 2332832.
